Restoring a 1953 MG TD 2
Place your mouse over the image to see the transformation by Peter Janetzki of JH Classic Restortions, step by step.
If you know this car or have any information about it, please contact me.
|
As it Was |
It's all there, partially disassembled. Body Number: TD 28439 |
A fairly straight car with suprisingly little rust |
Very original. Build date: 11th June 1953 (as per MG Archives) |
No accident damage, but the engine cross-member has been removed to accommodate a different engine / gearbox (possibly for racing) |
Only some minor surface rust. Basic framework is still solid even on the smaller items. |
The body and engine numbers match: it's a '53 TD 2 built on the 11th June 1953. |
 |
Engine number: XPAG / TD 2 / 28921. The engine was reconditioned but it's been stripped & checked again |
The gearbox is original and had been reconditioned |
 |
A Work in Process |
The car was chemically stripped. Panels straightened, rust spots removed and guards reinforced |
A new Battery Box made to fit |
The fuel tank stripped, the interior of the tank coated and a new side panel about to be welded in place |
A new hand-made Interior Guard |
Fitting the new new interior Guard |
A Work in Process |
Putting the panels back together to ensure a perfect fit |
Test-fitting the new "made to order" English Ash frame imported from the UK. |
The frame would be removed after the test-fitting and repainted in epoxy once the final adjustments are made |
Chassis painted and matched to body |
The finish on the inside is the same as the outide |
A Work in Process |
A deep, wet finish straight of the gun |
The finish on the inside is the same as the outide |
The engine rebuilt and balanced |
It's now taking shape |
Original Hydraulic Dampeners rebuilt and the suspension fitted. |
| A Work in Process |
Original Brakes rebuilt and fitted |
The new Walnut dash fitted |
Windcreen supports re-chromed and fitted |
Radiator re-cored and fitted |
Test-Fitting the interior. |
Peter Janetzki of JH Classic Restorations...........What's next on the list........in total control of the restoration of my TD. |
72 Spoke MWS Wire Wheels with 165 R 15 Coker Classic Whitewalls.
|
Water Pump Fitted |
Test-fitting the New Generator |
Sorting the correct Diff Ratio to enable smooth Highway Cruising.The Old "Stump Puller" Ratio was just going to make it. |
| Just about there. |
Fitting Lucas P700's with Q4 Halogens. |
Engine Bay Tidied uo. Bolts on the firewall refurbed and wating to be painted. |
Hood still to be fitted. Leave the Radiator Chrome or Paint it Red ? Left it Chrome. It just looks better. |
It's a lot "Whiter" than the pictures show. |
Test Run for the First Time in more than 60 Years.
|
| |
The Moss dash did not fit. Factory error. It was cut to the wrong size. So a new dash backing was made up, burl walnut veneer applied, clear coated in automotive clear to produce a mirror, glass-like finish. |
Original Steering Wheel as it was. |
The new (original) wheel. Machined in a knotted root wood, tinted to suit the walnut dash and clear cloated in automotive clear again. Centre hub & spokes are original and only needed to be be polished. |
Just a final touch-up to cover a hole drilled in the guard for a rear reflector or brake light (?). |
On the Road Again, not quite, but a test run in the Carpark. |
| Done and Now On the Run. |
Pete & Brett - The men behind the restoration at JH Classic Car Restorations. |
Finished, but still in the garage at JH Classic Car Restorations. |
Top up with 98 Octane. Wet weather or not, we're on our way to the 2019 MG National Meeting in Redland Bay. |
On show at the 2019 Festival of Elegance on the Gold Coast - Water Wheels & Wings. |
and the Grand Concourse of Elegance Winner is ........ My '53 MG TD. |
Day 2 on the road at The Mount Cotton Hill Climb. |
Long, sleek and shiny chrome. |
Chance meeting with a Gypsy Moth at the Southport Flying Club. |

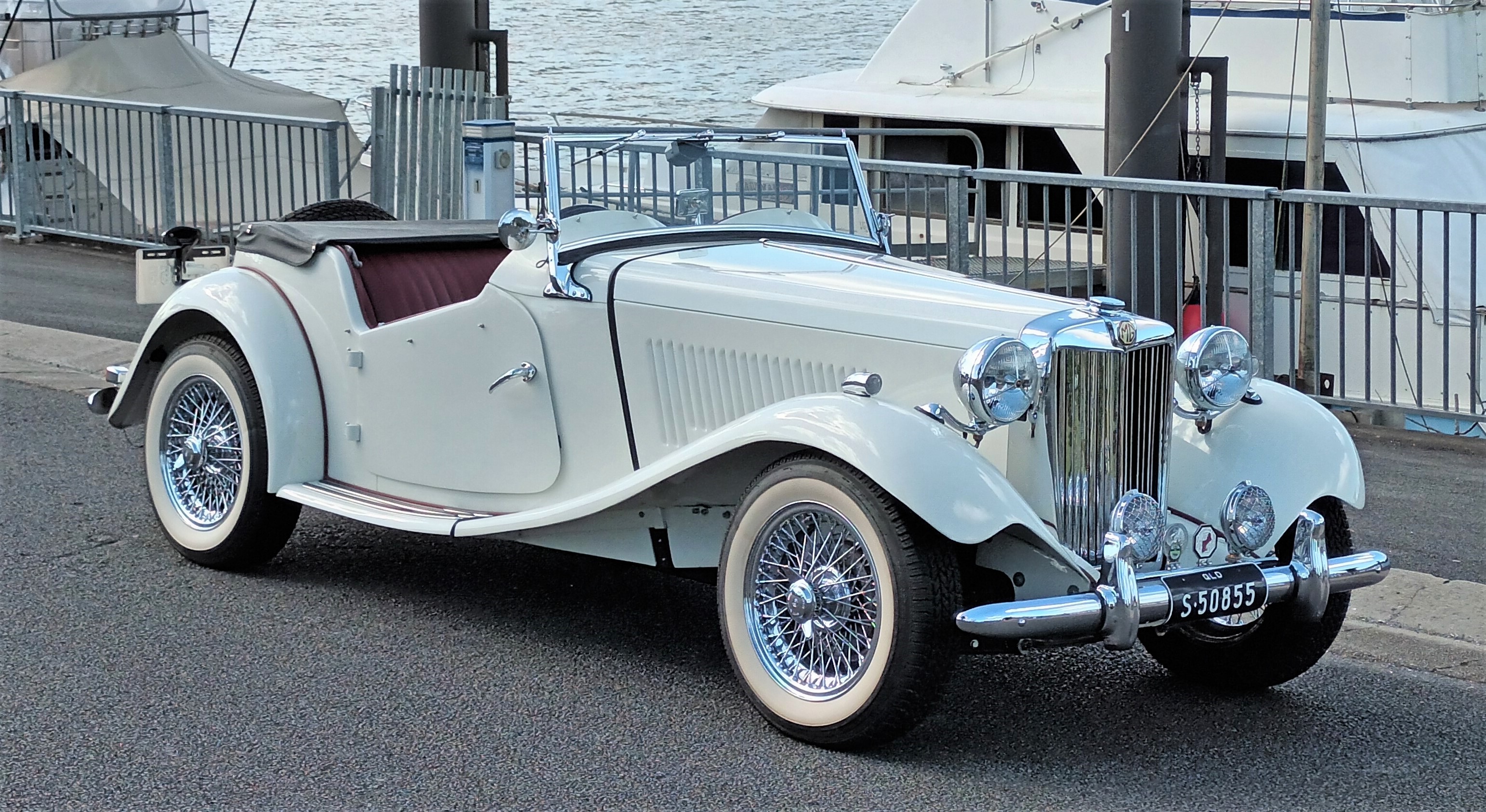

On thw Waterfront at Innisfail (1) |

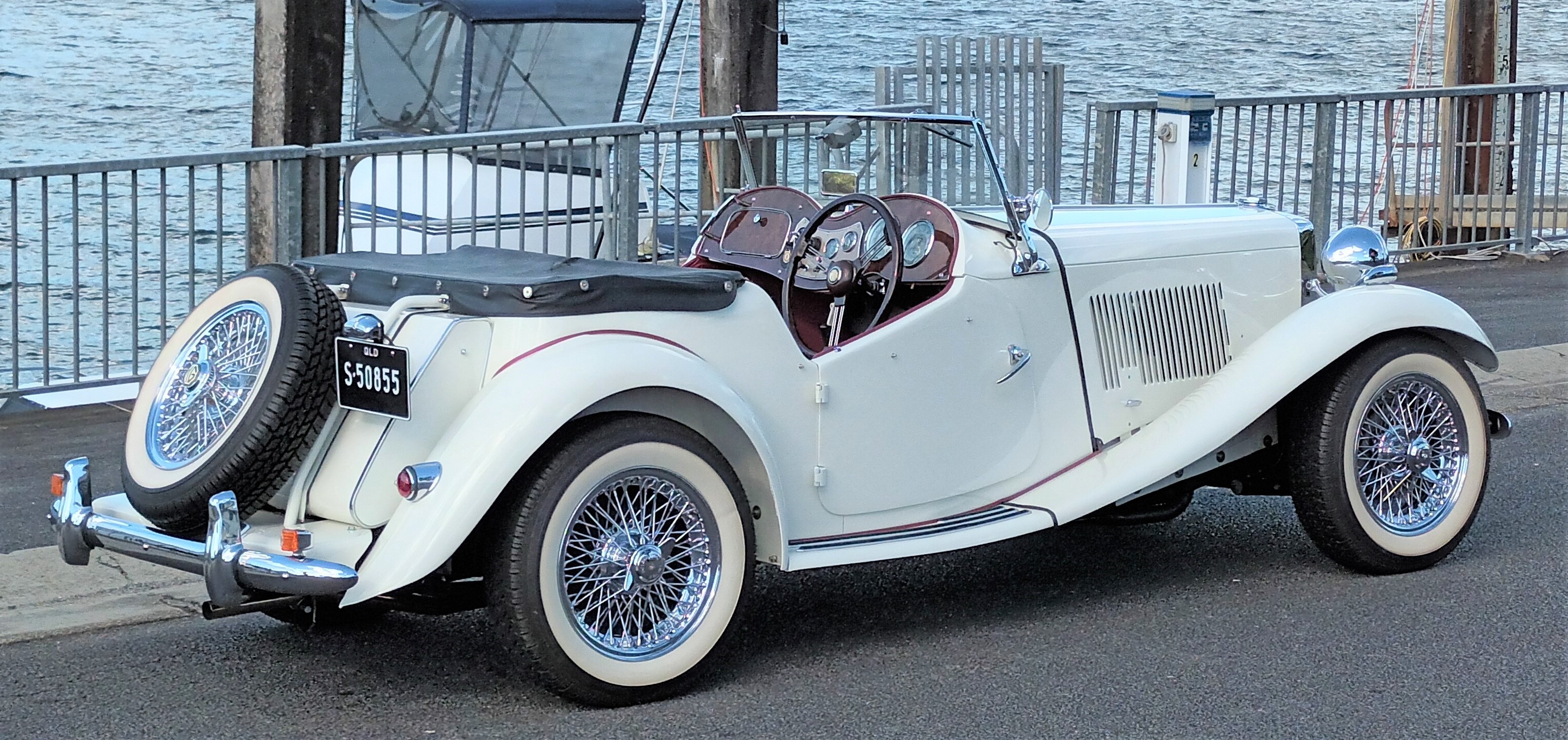

On thw Waterfront at Innisfail (2) |
